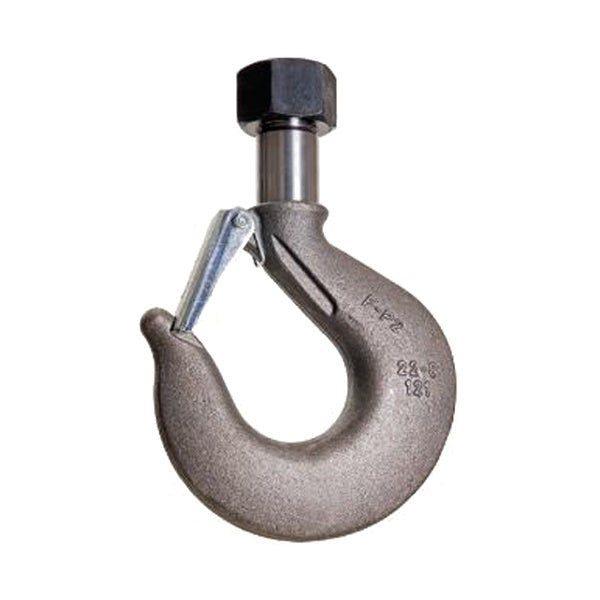

SHS-EL Hak gwintowany
Klasa wytrzymałości 8.
Gwint metryczny.
Nietypowy gwint i nakrętka na zamówienie!
Wymiar | Dopuszczalne obciążanie robocze DOR | Łańcuch | A | B | C | D | D1 | E | F | Waga |
--- | kg | mm | mm | mm | mm | mm | mm | mm | mm | kg |
6 | 1250 | 6 | M12 | 12 | 29 | 88 | 20 | 16,0 | 19 | 0,30 |
7 | 1600 | 7 | M16 | 17 | 42 | 109 | 22 | 25,0 | 24 | 0,48 |
8 | 2500 | 8 | M18 | 18 | 48 | 121 | 23 | 29,0 | 27 | 0,70 |
10 | 3200 | 10 | M20 | 20 | 50 | 132 | 27 | 29,0 | 30 | 1,05 |
13 | 5400 | 13 | M24 | 25 | 62 | 163 | 35 | 37,0 | 36 | 1,80 |
16 | 8000 | 16 | M30 | 30 | 75 | 201 | 43 | 44,5 | 46 | 3,80 |
19 | 11500 | 19 | M36x3 | 40 | 86 | 242 | 53 | 48,5 | 55 | 6,72 |
22 | 16000 | 22 | M42x3 | 45 | 101 | 268 | 58 | 58,0 | 65 | 9,95 |
26 | 22000 | 26 | M52x3 | 55 | 117 | 327 | 78 | 62,5 | 80 | 17,60 |
32 | 31500 | 32 | M64x4 | 65 | 145 | 395 | 87 | 78,0 | 100 | 33,50 |
